Turuiou UAV countermeasure vehicle

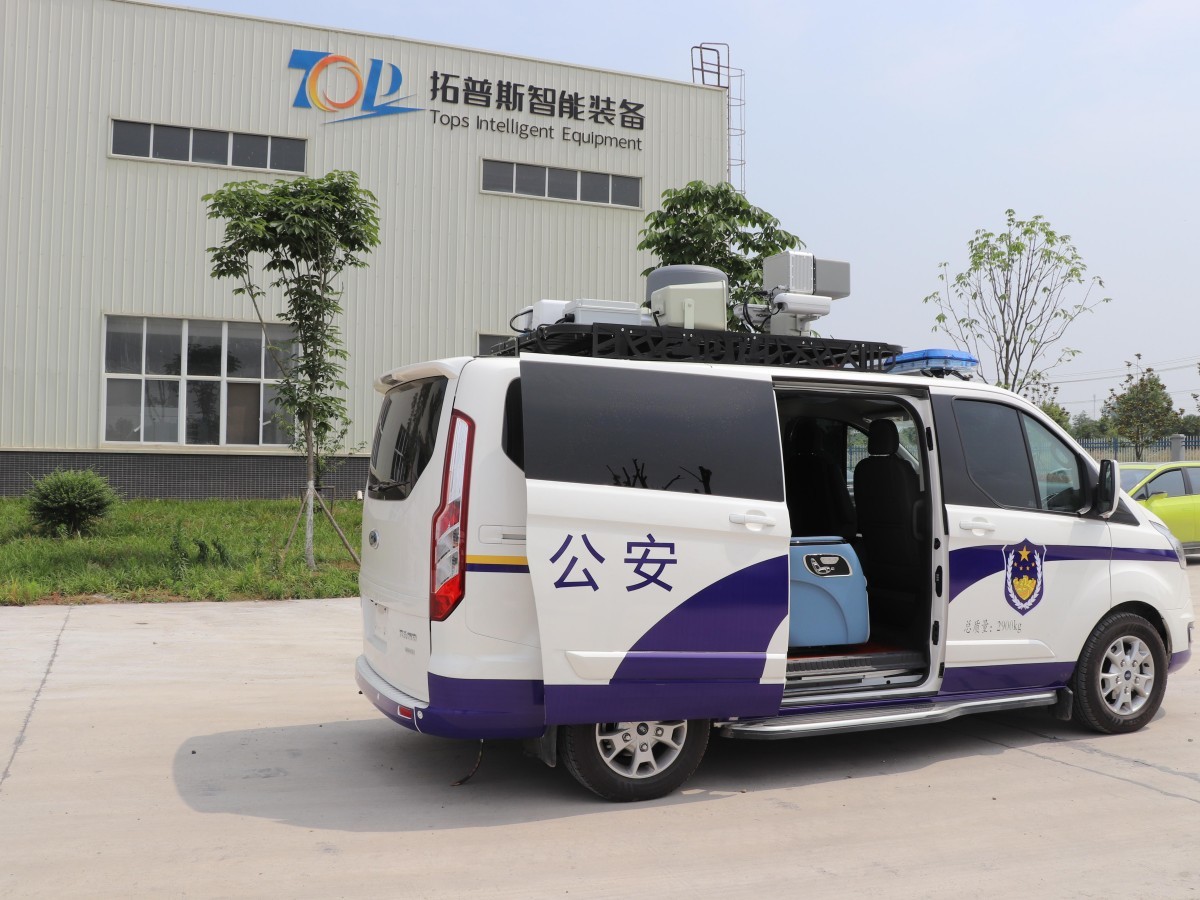

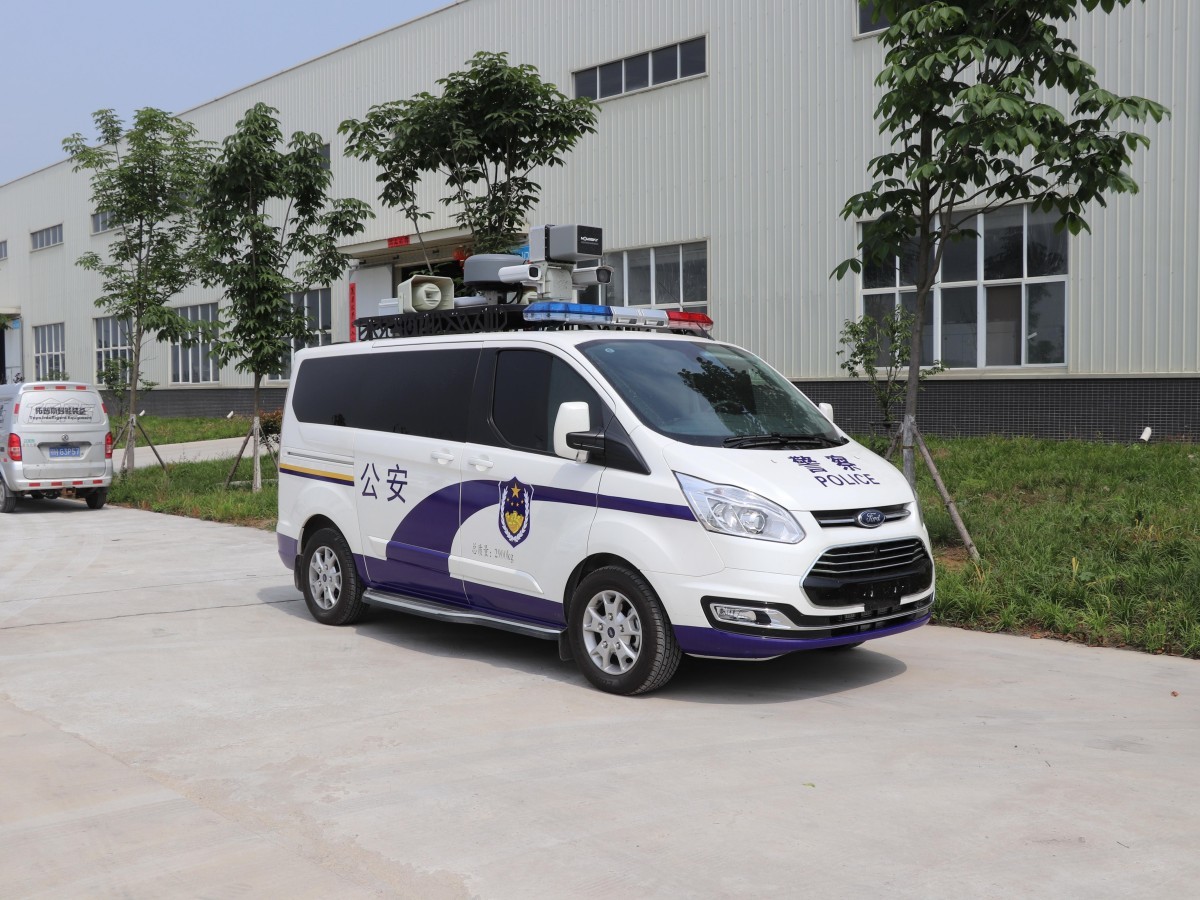

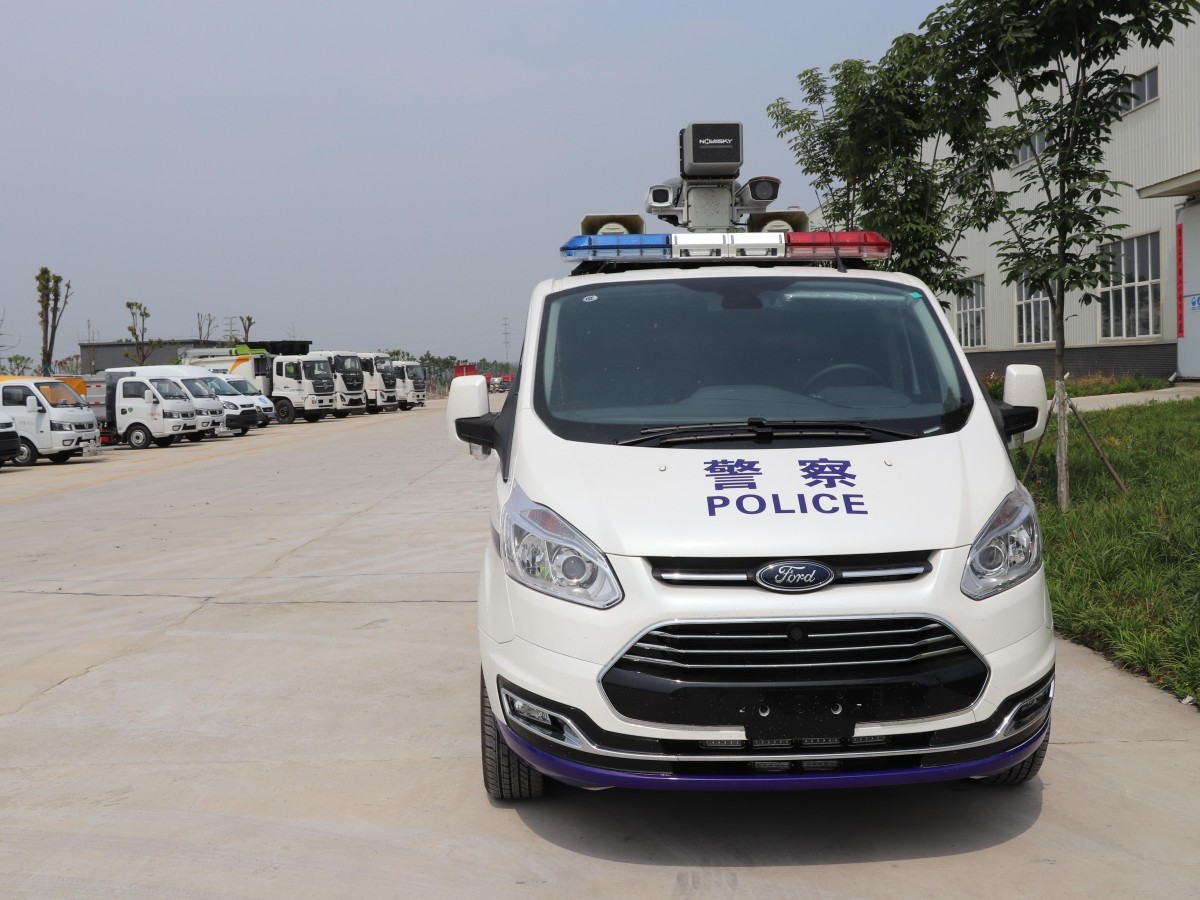

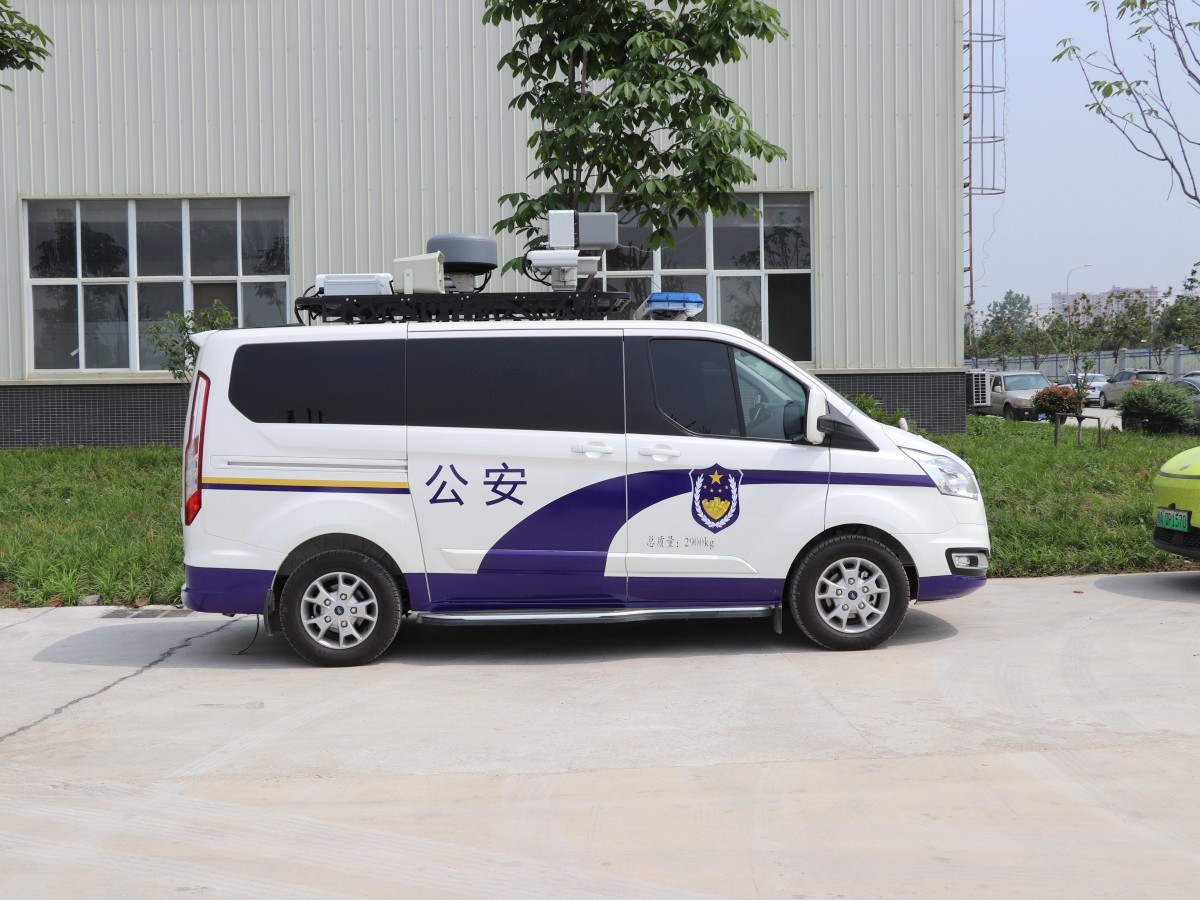

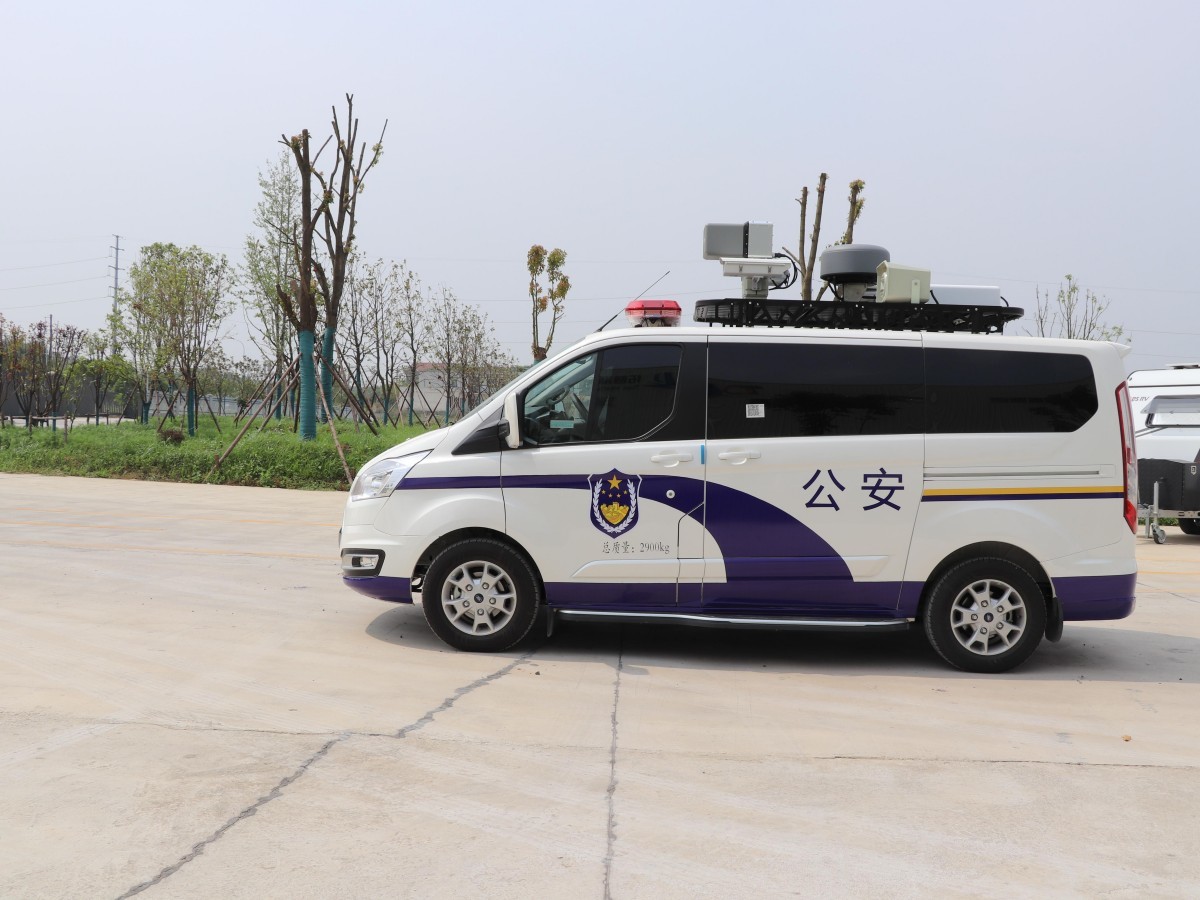

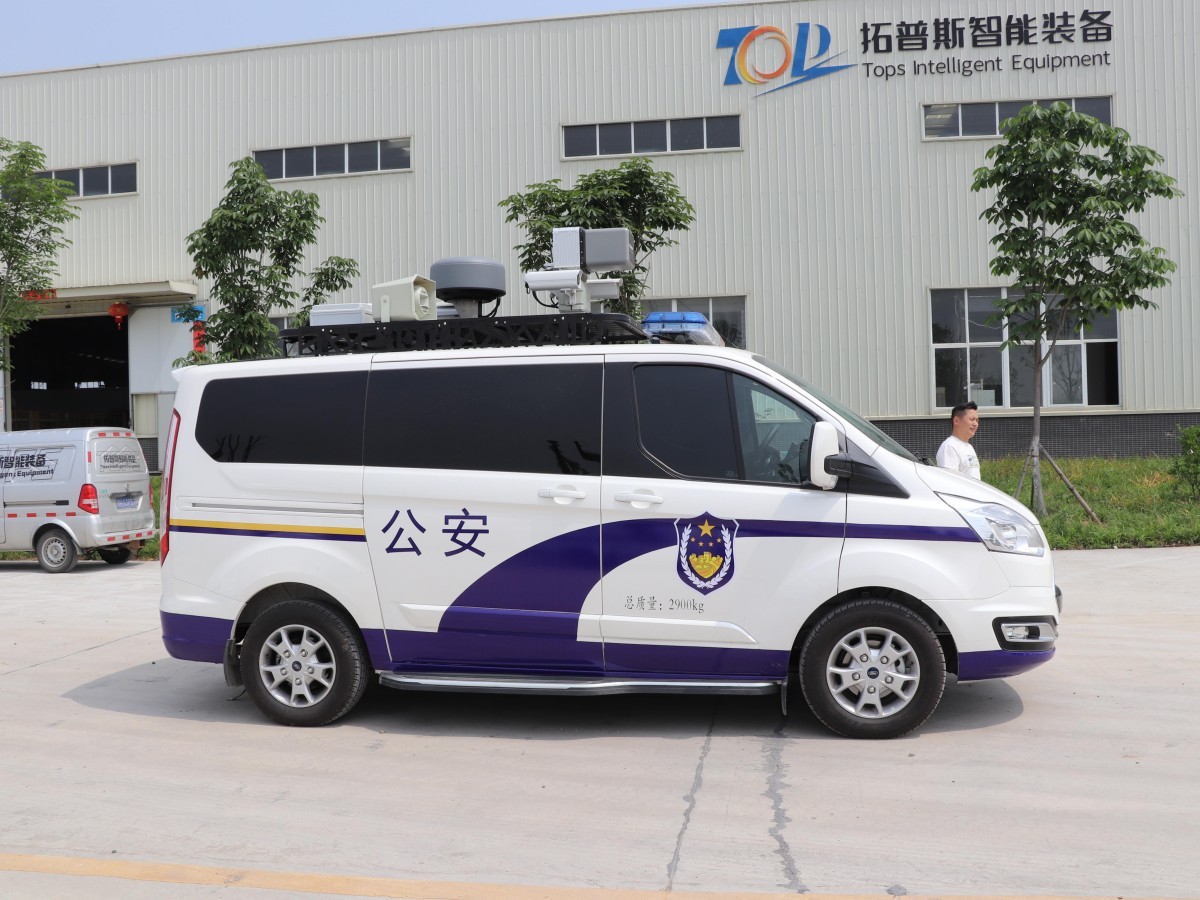

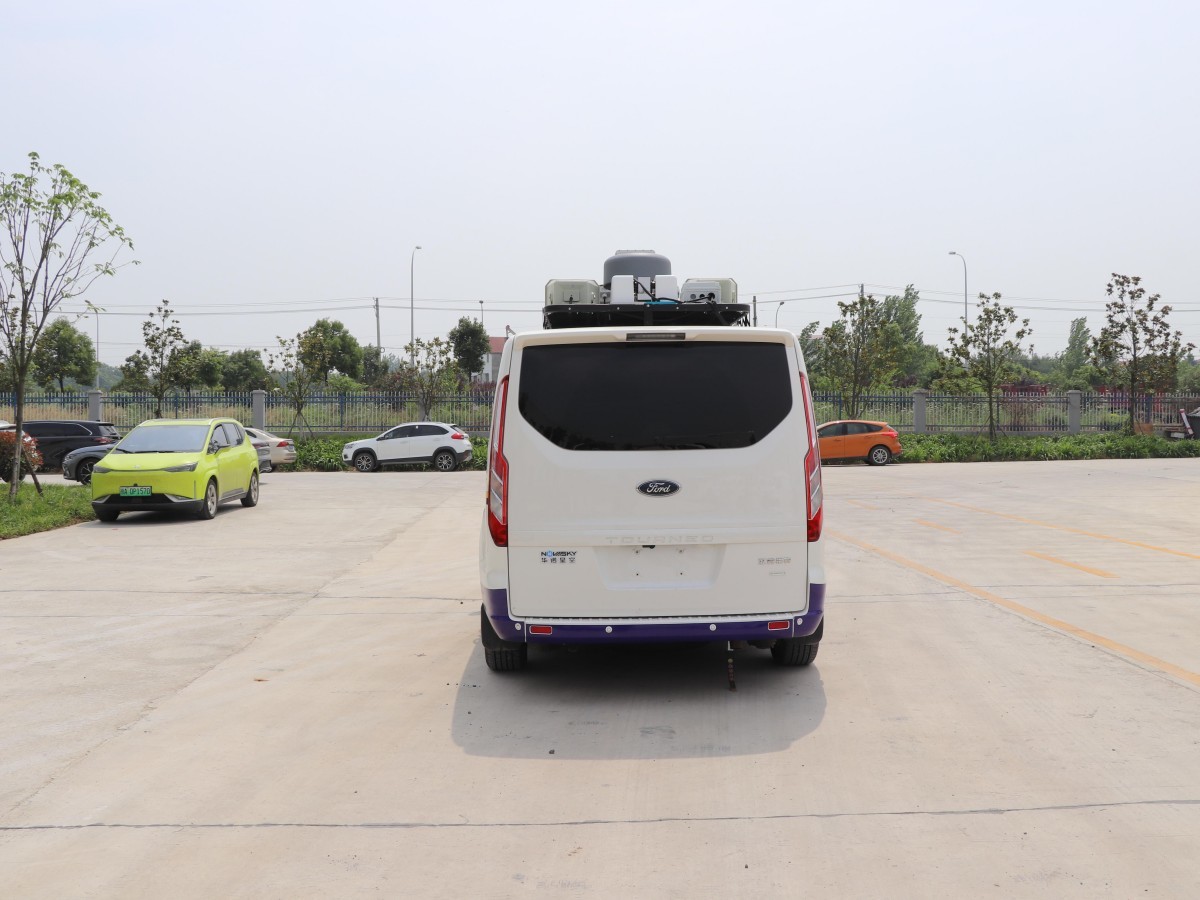

The TPS5030XJHG6 command vehicle is modified from a Ford JX6503PD-L6 passenger car chassis. The top of the vehicle's body is optionally equipped with a roof platform, spectrum detection equipment, a pan-tilt integrated photoelectric interference unit, searchlights, etc.
Product Details
Product Features
1. The TPS5030XJHG6 command vehicle is modified based on the Ford JX6503PD-L6 passenger car chassis. The top of the vehicle's body is equipped with a roof platform, spectrum detection equipment, a pan-tilt integrated photoelectric jamming device, searchlights, etc. It is equipped with a hard disk recorder, a central control system, a pan-tilt camera, and a siren loudspeaker, etc., which are special devices with image information acquisition, transmission, and storage functions. It is mainly used for public security, emergency management, traffic, and medical on-site dispatch and command.
| Name | Vehicle Model | Specific Parameters |
| Command Vehicle | TPS5030XXHG6 | Overall Dimensions: 4976 * 2095 * 1990, 2160, 2575, 2705 (mm) |
| Gross Weight: 2900Kg | ||
| Curb Weight: 2560, 2420 (Kg) | ||
| Passenger Capacity: 4 people | ||
| Chassis Model: JX6503PD-L6 | ||
| Emission Standard: National VI | ||
| Fuel Type: Gasoline | ||
| Engine Model: Jiangling Motors Co., Ltd. ECOBOOST4G20B6L | ||
| Engine Displacement: 1997 (ml) | ||
| Power (kw)/Horsepower (PS): 149/202.64 | ||
| Front overhang/Rear overhang: 1014/1029 | ||
| Wheelbase: 2933 | ||
| Number of Axles: 2 | ||
| Approach/Departure Angle: 18/20 | ||
| Tire Size: 215/65R16 | ||
| Number of Tires: 4 | ||
| Maximum Speed: 156, 100 (km/h) |
