Product Center
Campers

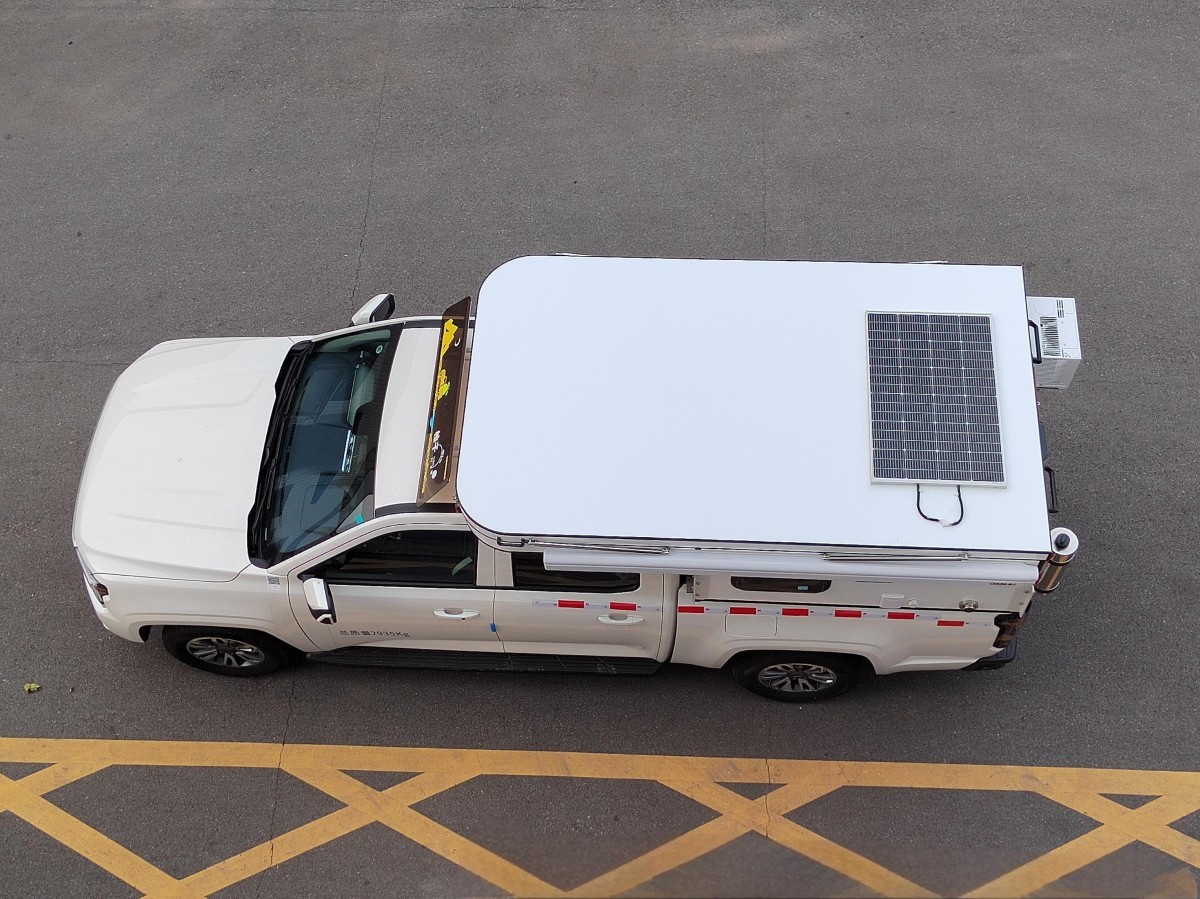

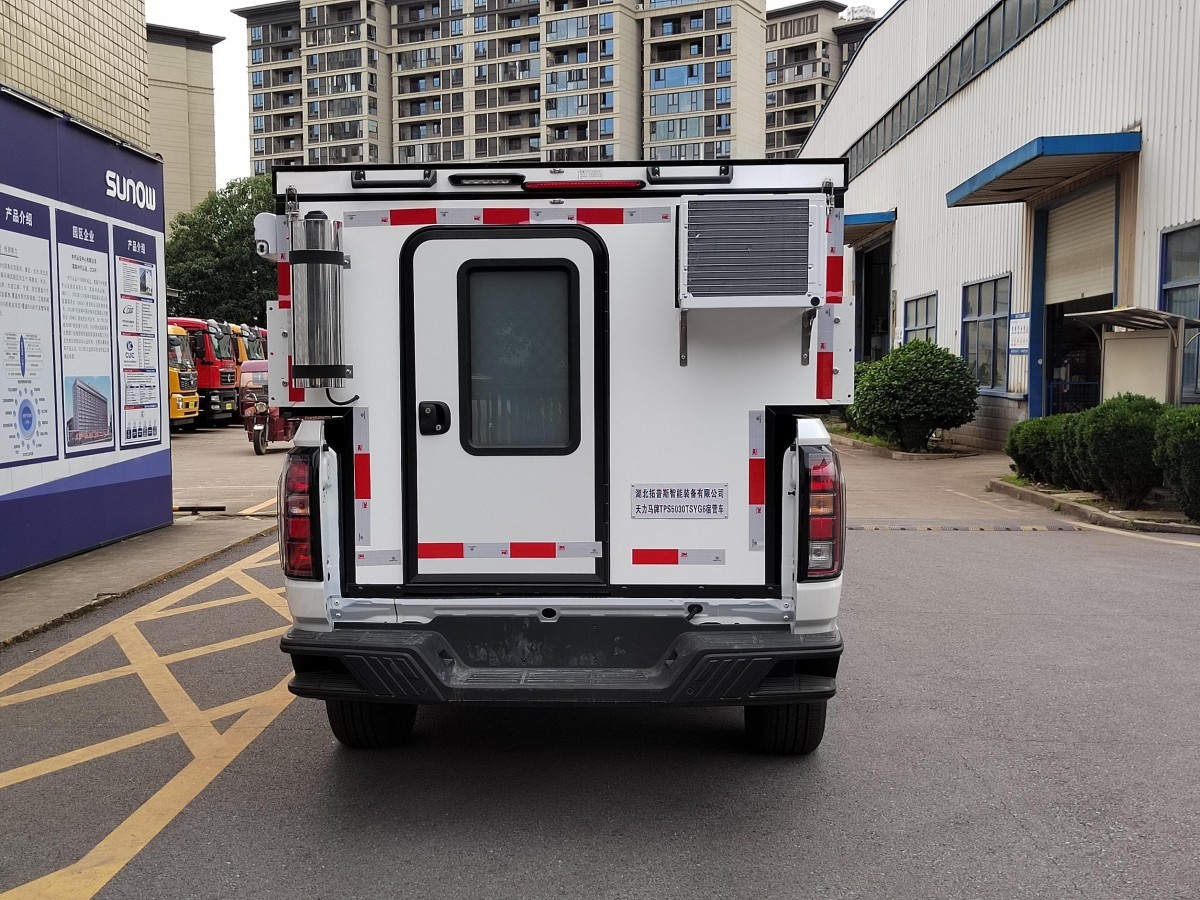

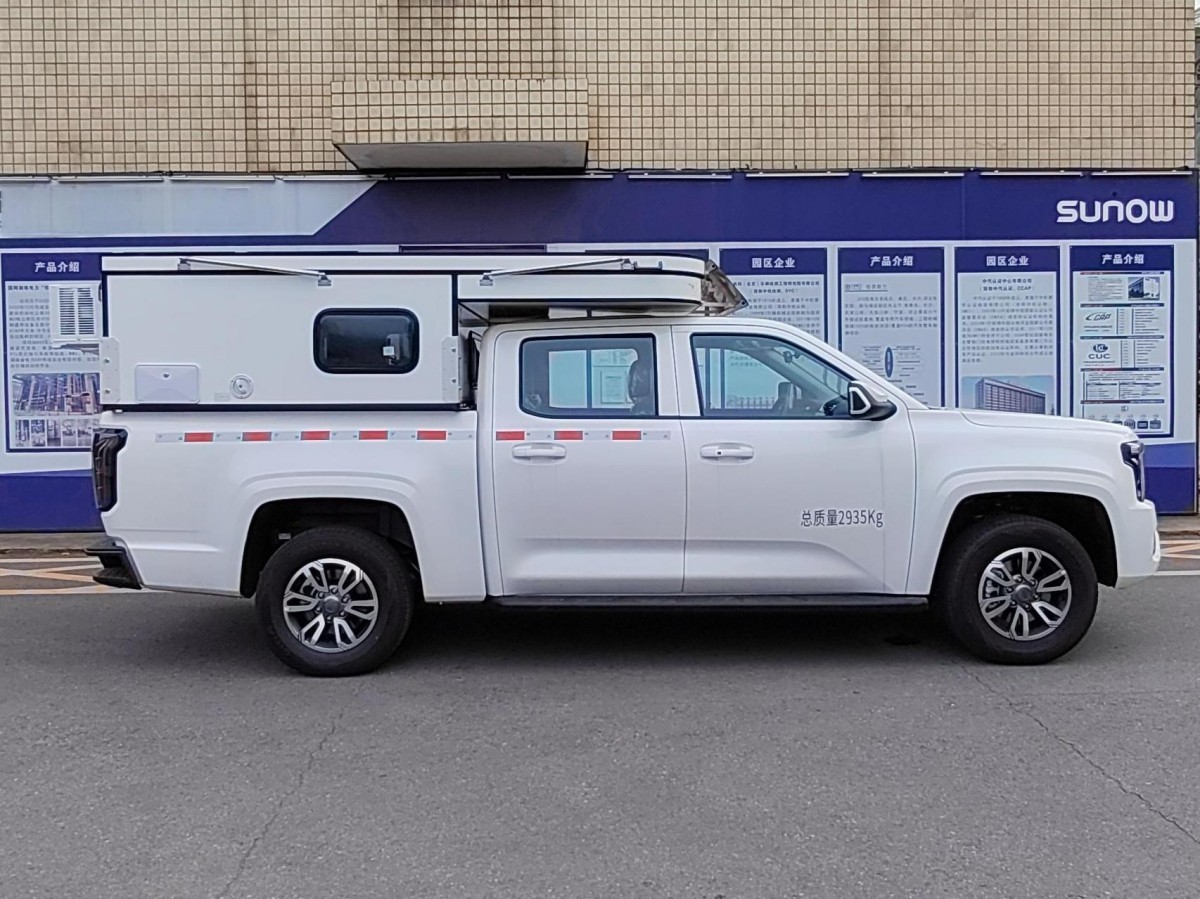

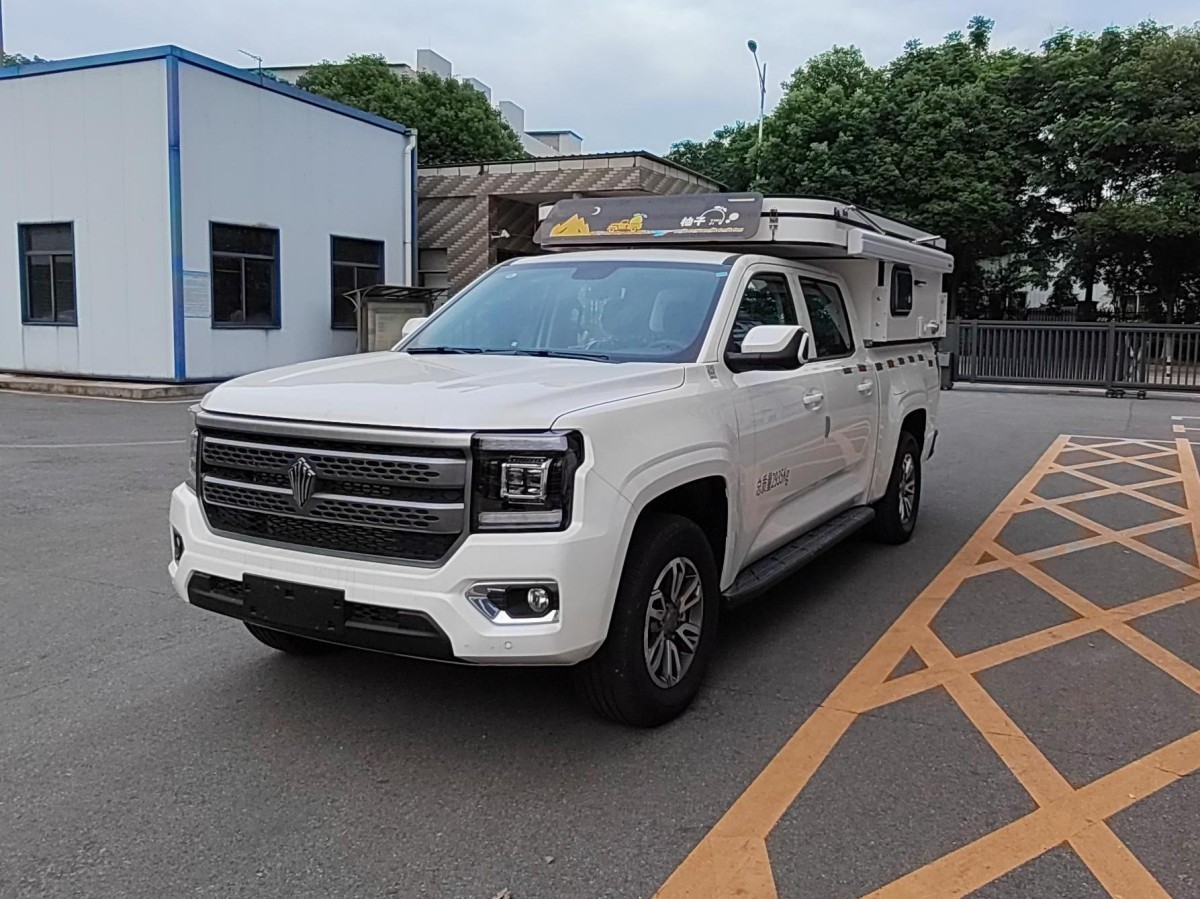

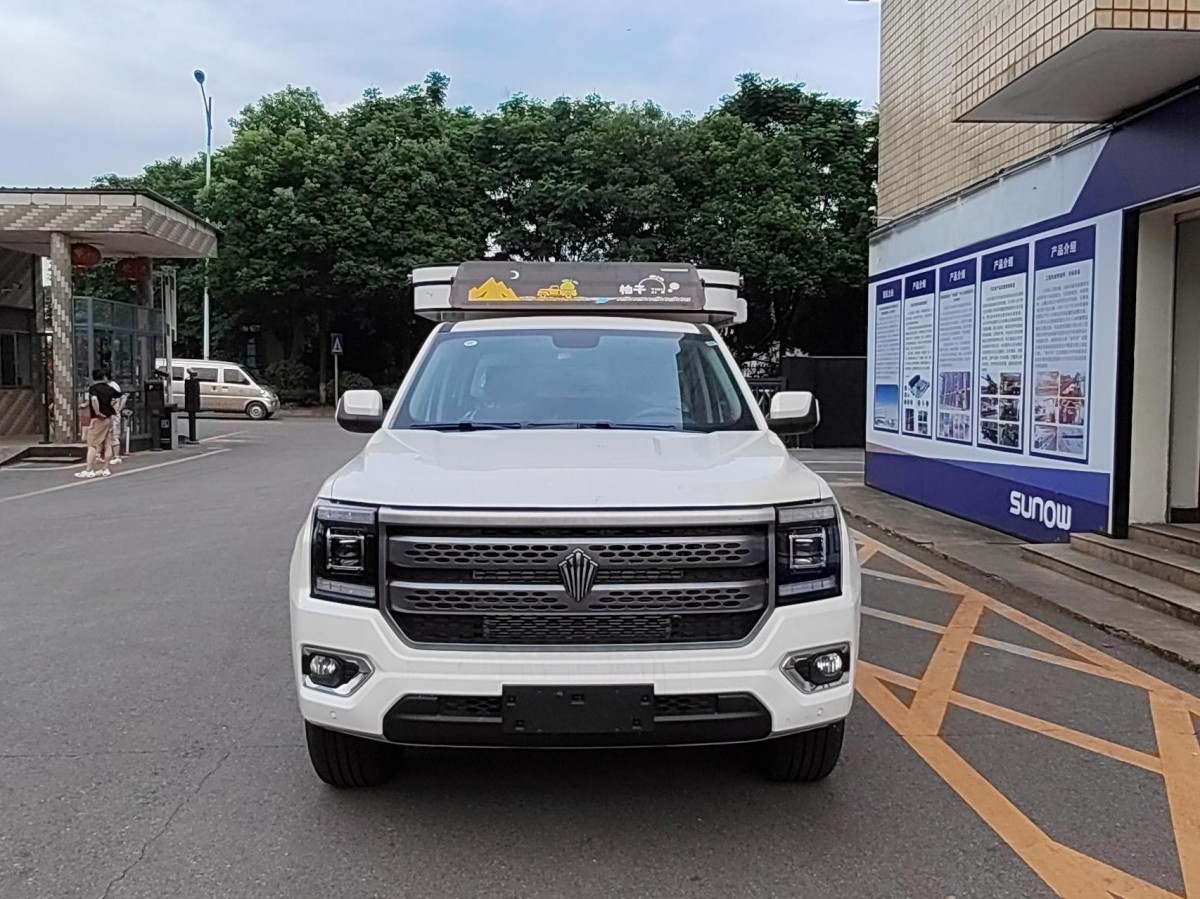

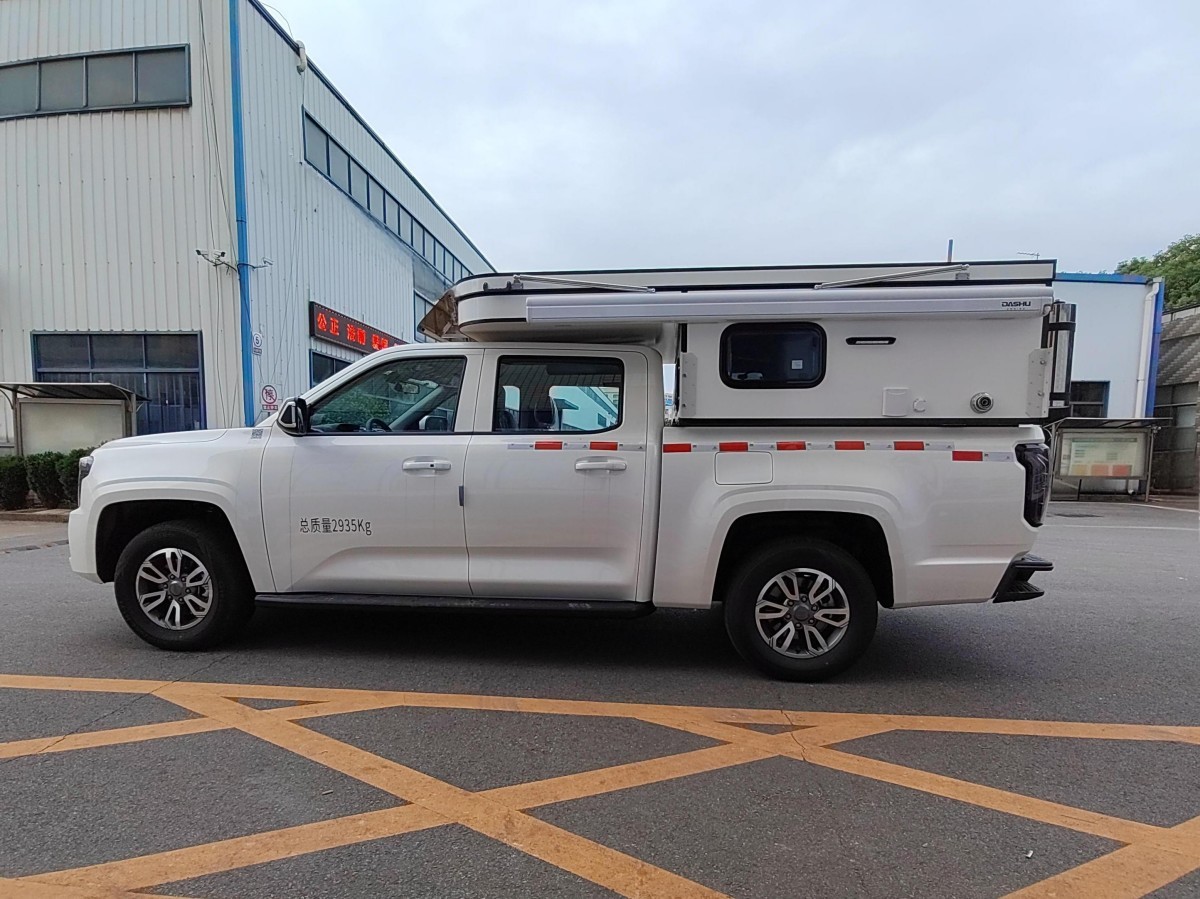

Product Introduction 1. Living area battery: 12V-300AH lithium battery; 2. Rooftop solar panel: 130W, with MPT controller; 3. Body: Aluminum-magnesium alloy frame, sandwich structure body, double-layer soft curtain cloth used at the lifting point, wear-resistant and heat-insulating; 4. Circuit configuration: RV-specific switch panel, AUSB charging port, 360m cigarette lighter, socket*2, omnidirectional lamp*1, silent ventilation fan*1; 5. Interior decoration: Forehead 1.9m*1.67m pull-out bed; The card seat area can be converted into a 1.67m*0.6m bed after lowering the table; The mattress and seat cushions are made of 50D high-density sponge; 6. Awning: 2.5m long, 2m extension, with outdoor light; 7. Air conditioning: Single-cold air conditioning; 8. Inverter: 3000W main unit + city power interface + leakage protector. Customization is available according to customer requirements
Product Details
Product Introduction
1. Living area battery: 12V-300AH lithium battery;
2. Rooftop solar panel: 130W, with MPT controller;
3. Body: Aluminum-magnesium alloy frame, sandwich structure body, double-layer soft curtain at the lifting point, wear-resistant and heat-insulating;
4. Circuit configuration: RV-specific switch panel, AUSB charging port, 360m cigarette lighter, sockets*2, omnidirectional lamp*1, silent ventilation fan*1;
5. Interior: 1.9m*1.67m pull-out bed in the forehead; The card seat area can be combined into a 1.67m*0.6m bed after lowering the table; The mattress and seat cushions are made of 50D high-density sponge;
6. Awning: 2.5 meters long, 2 meters extended, with outdoor light;
7. Air conditioning: Single-cold air conditioning;
8. Inverter: 3000W main unit + AC interface + leakage protector.
Customizable according to customer requirements
Third Generation Soft Lifting Top Light Enjoyment Version
Configuration | Specific Requirements | Price | Remarks | |
Manual Standard | Body | ☆Sandwich structure body: The outer layer uses fiberglass (high strength, beautiful, easy to maintain); | 29800 | This type of pickup truck camper can be customized for all pickup truck models, and the total height of 95% of the models is less than 2.2m after installation. |
☆The lifting part uses a double-layer soft curtain (the outer layer is waterproof and wear-resistant, and the inner layer is heat-insulating) | ||||
☆Window: 1 front window uses double-layer acrylic glass; | ||||
☆Door: Separately openable double doors, the inner door has a mosquito net | ||||
☆4 304 stainless steel hydraulic rods | ||||
Interior | ☆There is a 1.9m*1.67m pull-out bed in the forehead area | |||
☆Cabinets use Qiannian Zhou EO-grade ecological board | ||||
☆Mattresses and seat cushions are made of 50D high-density sponge | ||||
Circuit | ☆100AH gel battery (12V) | |||
☆130w solar panel with MPT controller | ||||
☆Circuit configuration: RV-specific switch panel, 2.1A USB charging port*, 360m cigarette lighter | ||||
Accessories | ☆Camper fixing to vehicle: Different vehicle models have different fixing methods, and accessories are provided by our company | |||
☆4 camper disassembly and assembly legs (disassembly and assembly can be done by one person) | ||||
|
|
|
|
|
Optional Circuit | Solar Panel | Semi-flexible soft panel (including MPPT controller) | 6 yuan/W | Standard 130W |
Battery | Gel Battery | 8 yuan/AH | Standard 100AH | |
Lithium iron phosphate | 19.5 yuan/AH |
| ||
300AH Lithium Battery | 5850 yuan |
| ||
Diesel heater | Usable at all altitudes (Longfei Brothers "Benfu" series) | 2100 yuan |
| |
Air Conditioning | Single cold air conditioning | 1500 yuan |
| |
Outdoor waterproof socket |
| 110 yuan |
| |
Driving charging (full set) | 16mm² national standard copper wire, boost charging isolator, fuse | 1900 yuan | Lithium Battery | |
16mm² national standard copper wire, isolator, fuse | 1500 yuan | Gel Battery | ||
Electric water heater | 2200W | 900 yuan |
| |
Indoor shower | Including water heater, outdoor shower, water tank | 5000 yuan |
| |
Inverter | 2000W main unit + AC interface + leakage protector | 2600 yuan | With charging function | |
3000W host + mains power interface + leakage protector | 3000 Yuan | |||
Top ventilation fan | Manual | 700 Yuan |
| |
Remote control (automatic window closing in rain) | 1500 yuan |
| ||
Optional Body | Cement gray | Default white box | 500 Yuan |
|
Aluminum alloy frame | Change to aluminum-magnesium alloy frame (standard configuration is steel pipe frame) | 2000 Yuan |
| |
Side awning | 2.5 meters long, 2 meters extended (aluminum alloy hand crank) with outdoor lights | 2300 Yuan |
| |
Quick release hook | Used to fix rescue boards, shovels, etc. | 300 Yuan/set |
| |
| Pull-out stove | Including cabin door and gas cylinder fixing bracket (gas cylinder not included) | 2100 yuan | Not recommended for optional installation |
Folding wash basin | With 50-liter PE horizontal water tank, water inlet, water level gauge, and water pump | 2100 yuan |
| |
Outdoor shower head | Double valve (mixing valve) | 320 Yuan |
| |
| The above price includes the optional 300AH lithium battery, deducting the price of the standard 100AH gel battery (12V) of 800 Yuan | |||
Third-generation soft lifting top light luxury version | |||
Name | Configuration | Details | |
Body | Body | Sandwich structure: fiberglass board + white XPS insulation board + PE thermoplastic board | |
Color | Optional: Black, Cement Gray, White | ||
Width | Optional: 175cm, 185cm | ||
Frame | 6-series aluminum-magnesium alloy | ||
Door | Single layer door (outward-opening window on the door) | ||
Manual soft lifting top | 4 hydraulic rods, outer waterproof cloth, inner insulation cotton cloth (removable) | ||
Cabinet | Waterproof furniture board | ||
Bed board | PP honeycomb board | ||
Pad | 50D high-density sponge | ||
Circuit | Lithium iron phosphate battery | 360AH (4.6 degrees of electricity) | |
Coulomb meter | *1 | ||
Switch panel | RV dedicated | ||
USB charging port | *2 | ||
Cigarette lighter socket | 360W*2 | ||
Universal lamp | *1 | ||
Quiet ventilation fan | *1 | ||
Solar charging | 260w solar panel *1 | ||
| MPPT controller *1 | ||
Mains power charging | 2000w power frequency charging and inverting integrated machine *1 | ||
| Mains power interface *1 | ||
| Leakage protection *1 | ||
| Outdoor socket *1 | ||
Air Conditioning | 12V split-type variable frequency air conditioner *1 | ||
Diesel heater | Longfei Brothers Plateau Version | ||
| 10-liter stainless steel fuel tank | ||
Water system | Wash basin | *1 | |
PE water tank | 50 liters | ||
Water inlet | *1 | ||
Water outlet | *1 | ||
Water level gauge | *1 | ||
Quiet water pump | *1 | ||
Outdoor shower spray | *1 | ||
Disassembly | Fixing | According to the vehicle model, accessories are provided by our company | |
Accessories | Disassembly and installation dedicated support legs *4 (single person disassembly and installation possible) | ||
Other | Side awning | Aluminum alloy hand-cranked 180-degree side awning 2.5m*2m with outdoor light *1 | |
Third-generation soft lifting top premium version | ||
Name | Configuration | Details |
Body | Body | Sandwich structure: fiberglass board + white XPS insulation board + PE thermoplastic board |
Color | Optional: Black, Cement Gray, White | |
Width | Optional: 175cm, 185cm | |
Frame | 6-series aluminum-magnesium alloy | |
Door | Single layer door (outward-opening window on the door) | |
Manual soft lifting top | 4 hydraulic rods, outer waterproof cloth, inner insulation cotton cloth (removable) | |
Cabinet | Waterproof furniture board | |
Bed board | PP honeycomb board | |
Pad | 50D high-density sponge | |
Circuit | Lithium iron phosphate battery | 600AH (7.7 degrees of electricity) |
Coulomb meter | *1 | |
Switch panel | RV dedicated | |
USB charging port | *2 | |
Cigarette lighter socket | 360W*2 | |
Universal lamp | *1 | |
Quiet ventilation fan | *1 | |
Top ventilation fan | *1 with light, two-way blowing | |
Solar charging | 480w solar panel *1 | |
| MPPT controller *1 | |
Mains power charging | 3000w power frequency charging and inverting integrated machine *1 | |
| Mains power interface *1 | |
| Leakage protection *1 | |
| Outdoor socket *1 | |
On-the-go charging | 16mm2 National Standard copper wire | |
| Battery isolator *1 | |
| Fuse *1 | |
Air Conditioning | 12V split-type variable frequency air conditioner *1 | |
Diesel heater | Longfei Brothers Plateau Version | |
| 10-liter stainless steel fuel tank | |
Water system | Wash basin | *1 |
PE water tank | 50 liters | |
Water inlet | *1 | |
Water outlet | *1 | |
Water level gauge | *1 | |
Quiet water pump | *1 | |
Electric water heater | 1500w *1 | |
Indoor shower room | *1 | |
Disassembly | Fixing | According to the vehicle model, accessories are provided by our company |
Accessories | Disassembly and installation dedicated support legs *4 (single person disassembly and installation possible) | |
Other | Side awning | 270-degree car side awning *1 |
Quick release hook | Used to secure recovery boards, shovels, etc. | |
Pull-out stove | Including hatch, gas cylinder bracket | |
