Iveco Daily Power Vehicle

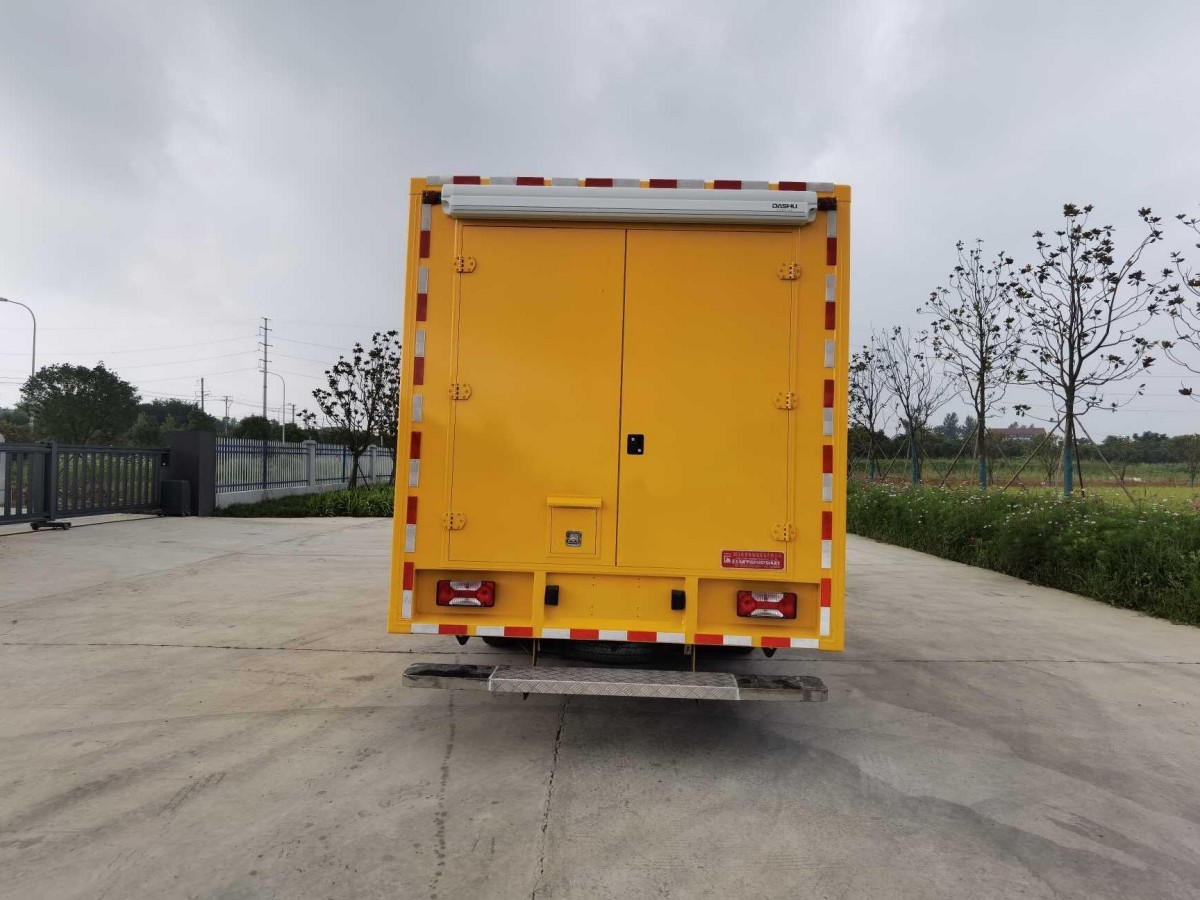

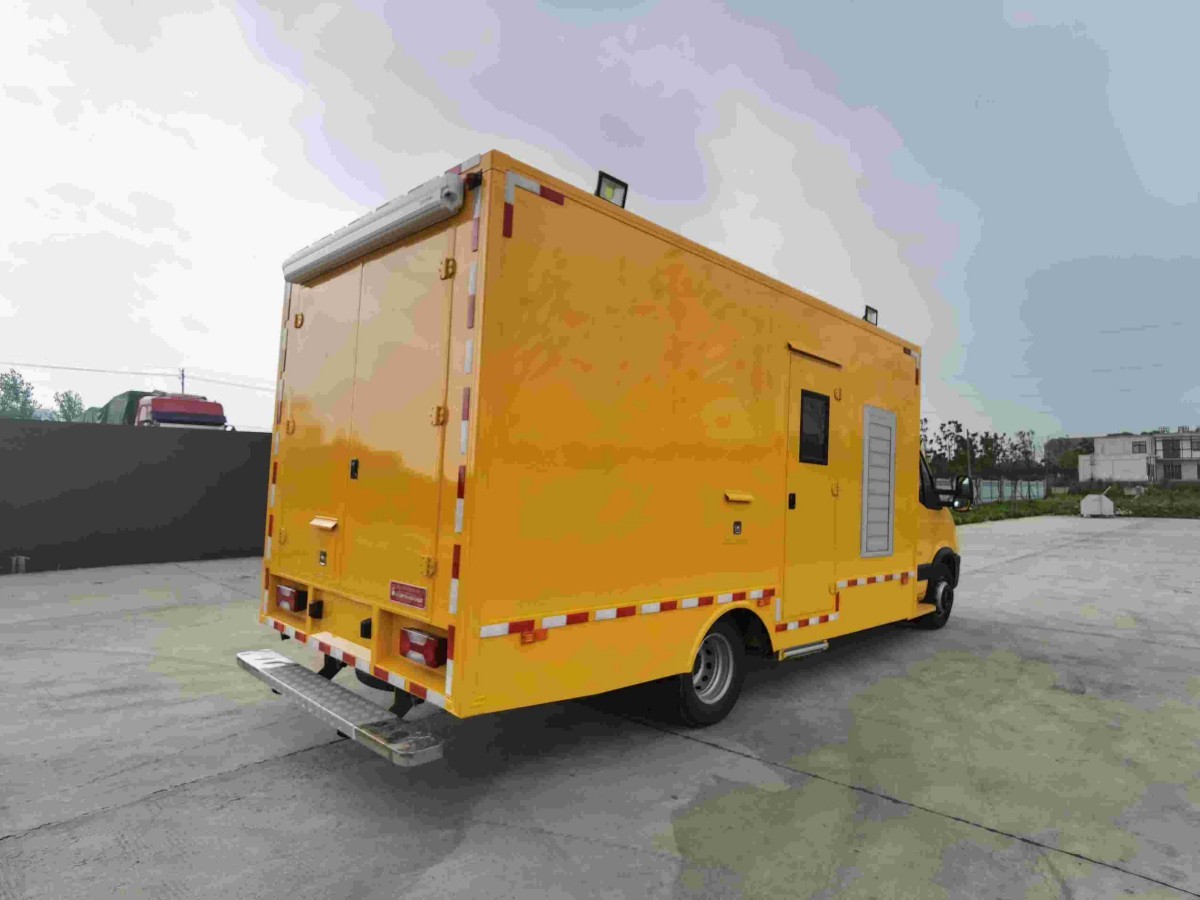

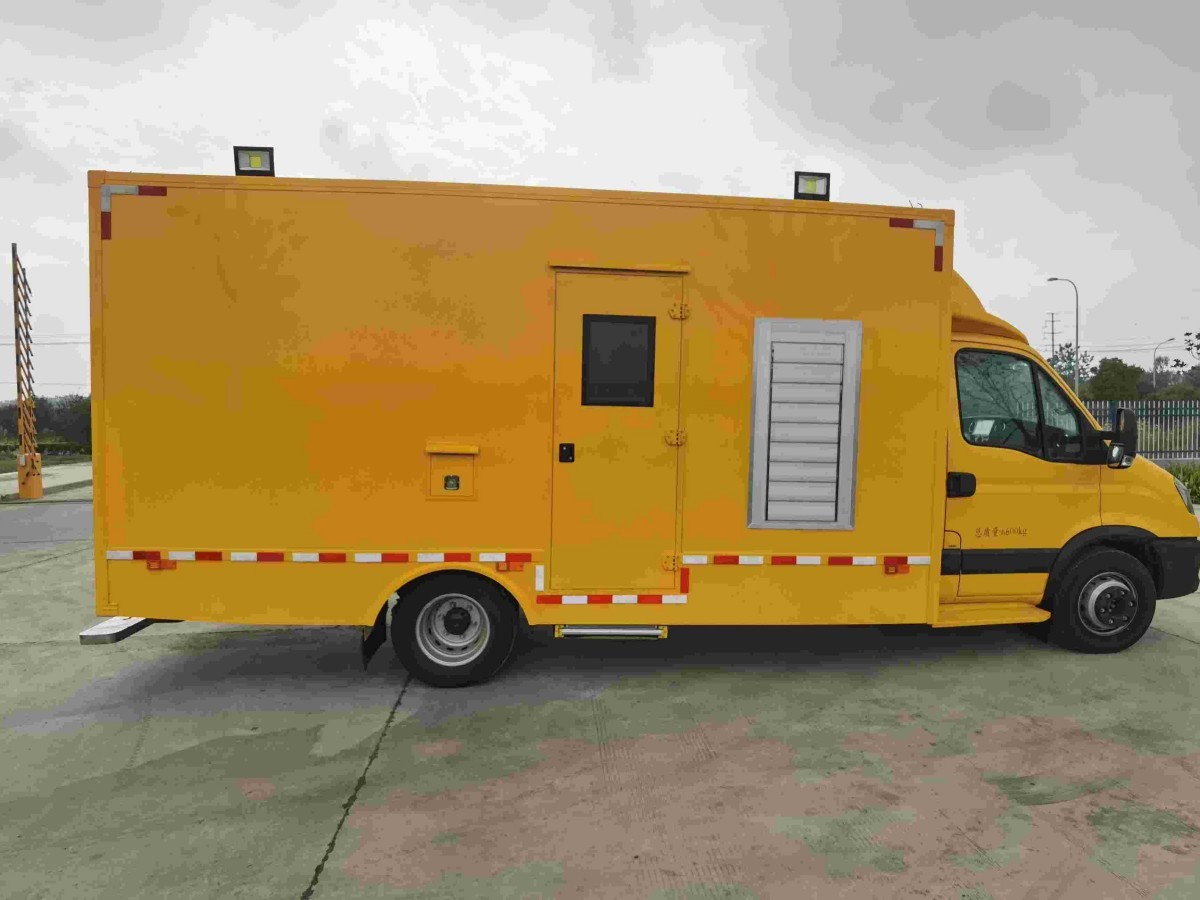

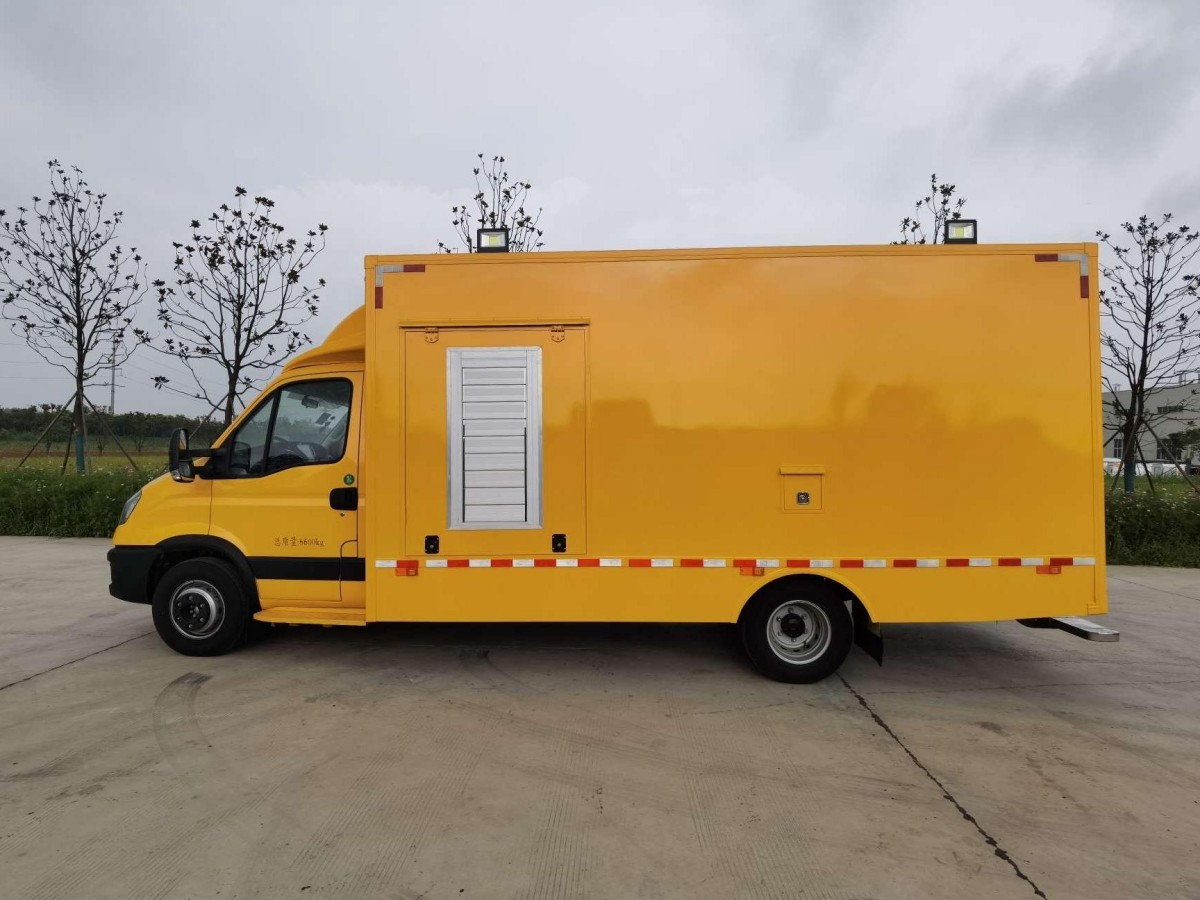

The TPS5070XDYG6 power vehicle is a special vehicle built on an Iveco NJ1076ELC Class II chassis. It is equipped with a body, generator set, switchboard, winch, and power management system, mainly used for emergency power rescue in major conferences, disaster relief, and important places.
Product Details
I. Product Introduction
The TPS5070XDYG6 power vehicle is a specialized vehicle built on an Iveco NJ1076ELC Type II chassis. It is equipped with a body, generator set, switchboard, winch, and power management system. Primarily used for major conferences, disaster relief, and emergency power rescue in important locations.
The power vehicle mainly consists of a Type II chassis, a soundproof body, a generator set, a cable winch, and a lighting system. It provides a 50kw emergency power supply. When a substation experiences a DC fault, it can provide 220V and 48V DC power. It can also simultaneously supply AC and DC power to the substation, quickly and effectively resolving power failures to ensure normal electricity usage.
Soundproof Body
The body is highly durable, absorbs and attenuates noise, and has composite functions of sound insulation, heat insulation, dust prevention, rain prevention, and shock prevention. By adopting a fully sealed body structure (except for the intake, exhaust, and exhaust ports), the operating noise of the unit can be effectively isolated and controlled. The body wall is filled with highly efficient sound-absorbing cotton, the outer wall is made of automotive aluminum alloy steel plate, and the inner wall is made of galvanized perforated steel plate. This allows the body wall to isolate noise while maximizing the absorption and attenuation of some noise, improving noise reduction. In addition, the joining position of the car door is also a key area for noise leakage and transmission, and is treated with elastic seals.
Generator Set
Generator Set Introduction
Using a T052000ET generator set, mainly composed of a diesel engine, a generator, a cooling water tank, and other parts. It adopts a dedicated, high-efficiency, weighted silencer unit box which is a combination type, convenient for installation and maintenance, with a sturdy structure. The chassis is a double-layer design and is equipped with shock absorbers. The T052000ET quiet diesel generator has the following advantages:
Quick power start, stable operation, low vibration, low fuel consumption, small size, compact structure, stable and reliable ignition.
The cylinder head uses alloy cast iron with a high degree of reinforcement, and uses an integral forged steel crankshaft and sliding bearings, making it compact, lightweight, and highly reliable.
The unit features a compact structure, large power reserve, high reliability, and good speed regulation performance.
Conditions of Use
Altitude: below 2000 meters, ambient temperature: -25~+50℃, indoor use with good ventilation, no chemically corrosive gases or conductive dust.
Generator Set Parameters
Unit Model | T052000ET | Rated Power | 50KW | Rated Frequency | 50Hz |
Number of Phases | Three-phase | Maximum Power | 52KW | Rated Speed | 1500rpm |
Weight | 840KG | Rated Current | 72.4A | Maximum Altitude | 2000m |
External Dimensions | 1600*950*1260mm | Maximum Current | 75.3A | Maximum Temperature | 40℃ |
|
| Rated Voltage | 400V |
|
|
Cable Winch
The cable winch uses a custom-built, internal motor drive, which is lightweight and reliable. Different speed ratios can be selected according to the requirements of cable winding and unwinding of different specifications to achieve optimal operating effect. The operation is very simple and easy to use. It can conveniently and quickly wind and unwind cables, greatly reducing labor intensity.
Lighting System
The vehicle interior uses a safe low-voltage lighting system. LED lights are installed in the generator room and cable room, and the generator set is equipped with emergency lights to ensure lighting needs in emergencies.
Power Distribution Output System
A newly designed DC charger. When the substation transformer fails, it can provide 380V AC power. When the substation experiences a DC fault, it can provide 220V and 48V DC power, and can also simultaneously provide AC and DC power to the substation, ensuring the safe and stable operation of the substation.
2.7 Built-in Air Conditioner

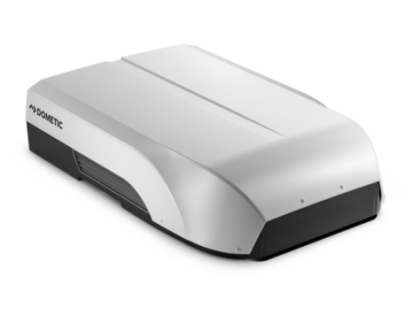

Equipped with a Dometic HP36PLUS top-mounted air conditioner, which is powerful, efficient, and quiet. It uses advanced dual-cylinder variable frequency compressor technology, making it run more smoothly and quietly, and has strong cooling capacity for quick interior cooling.
1 | Working Power Supply: 230V 50HZ |
|
2 | Nominal Cooling Capacity: 3028W | |
3 | Nominal Heating Capacity: 3017W | |
4 | Cooling Consumption: 1520W | |
5 | Heating Consumption: 1300W | |
6 | External Dimensions: 1070×750×280mm | |
7 | Opening Dimensions: 360×360mm | |
8 | Weight: 45Kg |
II. Overall Vehicle Structure Parameters
Product Model | TPS5070XDYG6 Power Vehicle |
Chassis Model | NJ1076ELC |
Chassis Manufacturer | Nanjing Automobile Group Co., Ltd. |
External Dimensions (Length × Width × Height) (mm) | 7550*2400*3330 |
Engine Model | F1CE8481K 120KW/170 horsepower Nanjing Iveco Motor Co., Ltd. |
Wheelbase (mm) | 4350 |
Front overhang/Rear overhang (mm) | 1002/2198 |
Maximum Gross Vehicle Weight (kg) | 6600 |
Curb Weight (kg) | 6405 |
Tire Model | 225/75R16LT 12PR |
Front Track (mm) | 1725 |
Rear Track (mm) | 1660 |
Approach Angle (° ) | 20 |
Departure Angle (° ) | 9 |
Alternator Power (kW) | 50 |
III. Electric Vehicle Specifications and Modification Content
Serial Number | Brand and Model Name | Unit | Quantity | Remarks | |
| 1 | IVECO Daily C70-43 | Vehicles | 1 | External Dimensions Length × Width × Height (mm): 7403 × 2154 × 2330 × 2830 Gross Vehicle Weight (kg): 6800 Number of Passengers: 3 Engine Displacement (L): 3.0T Engine Power (kW): 125 Horsepower: 170 Fuel Type: Diesel Emission Standard: National VI (China VI) Drive Type: Front-engine Rear-wheel Drive Number of Tires: 6 Configuration: Reversing Radar, Electric Heated Rearview Mirrors, Daytime Running Lights, Fog Lights |
Item | Serial Number | Modification Content | Unit | Quantity | Remarks |
Body | 1 | Compartment Body | Set | 1 | Carbon steel plate paint, including doors and louvers, etc. |
2 | Roof-mounted Air Conditioner | Set | 1 | 2p | |
3 | Roof-mounted Exhaust Fan | Set | 2 |
| |
4 | Floodlights | pcs | 5 | LED (2 left, 2 right, 1 rear) | |
5 | Rear Upper Step | Set | 1 |
| |
6 | Rear Sunshade | Set | 1 | Manual | |
7 | Electric Step | Set | 1 |
| |
Interior | 8 | Interior Insulation | Set | 1 | Side walls and roof foam treatment (to improve vehicle insulation) |
9 | Generator Compartment | Set | 1 | Including partition and heat insulation and noise reduction treatment | |
10 | Operation Cabinet | Set | 1 | Square tube spray-painted frame + front paint-free board | |
11 | Floor | Set | 1 | PVC + patterned aluminum plate | |
|
|
|
|
| |
12 | Storage Cabinet | Set | 1 | Square tube spray-painted frame + front paint-free board | |
13 | Cabinet partition enclosure and cabinet base | Set | 1 | Steel frame, including wheel package leveling surface covered with PU | |
14 | Cabinet | Set | 3 | Iron, spray-painted surface | |
15 | Cabinet Shock Absorption | Set | 26 | Including bottom and top shock absorbers, side shock absorbers (wire rope) | |
16 | Cable Reel Rack | Set | 1 | Profile Frame | |
17 | Electric Cable Reel | Set | 3 | Excluding wires, wire diameter less than 20㎜ | |
18 | Long Strip Lights | pcs | 6 | LED 6pcs in front compartment, rear compartment | |
19 | Internal Wiring and Accessories | Set | 1 | Including wiring (concealed wiring), sockets, protective sleeves, etc. | |
20 | External Aviation Connector | Set | 1 | Including body opening and external interface (aluminum) | |
21 | Power Distribution Panel | Set | 1 | Matching, including leakage protector, changeover switch, etc., including 4 sets of PDU | |
22 | Lightning Protection Grounding | Set | 1 | Including lightning protection module, copper braid, grounding stake, body embedded copper strip, etc. | |
Other Parts | 23 | Paint Consumables and Hardware Sundries | Set | 1 | Paint, glue, sealing strips and various brackets, 2 aerosol fire extinguishers, 1 temperature and humidity recorder, 2 smoke detectors, fixing straps, ground rings, etc. |
| 24 | Customer Equipment Installation | Set | 1 | Battery Pack and Instrument Installation |
